Specifications

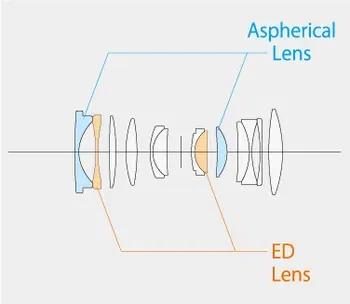

Lens Configuration

MTF Chart

Vertical axis : Contrast

Horizontal axis : Distance from the center of the image

S : Sagittal

M : Meridional

Spatial frequency 10 lines/mm

Spatial freguency 20lines/mm

Spatial freguency 40lines/mm

Specifications

TypeFUJINON GF30mmF3.5 R WR
Lens configuration13 elements in 10 groups
(includes 2 aspherical, 2 ED elements)
Focal lengthf=30mm (24mm in 35mm format equivalent)
Angle of view84°
Max. apertureF3.5
Min. apertureF32
Aperture control
Number of blades9 (rounded diaphragm opening)
Step size1/3EV (20 steps)
Minimum Object Distance32cm
Max. magnification0.15x
External dimensions : Diameter x Length*1 (approx.)Ø84mm×99.4mm
Weight*2 (approx.)510g
Filter sizeØ58mm

NOTES

*1 distance from camera lens mount flange

*2 excluding caps and hoods
