Quick Start Guide FUJIFILM X-H2
Congratulations on your new FUJIFILM X-H2! This quick start guide introduces your camera’s features and functions, and will help you get more creative with your photography.
Contents
- Personalising your camera
- Focusing modes
- Pixel Shift mode
- Using in-body image stabilisation (IBIS) for stills and video
- Shooting video
- Connecting to your smart device
Personalising your camera
Many aspects of X-H2 can be customised to suit your preferences, such as controls, displays and shooting modes.
Controls, swipes and dials
Customise the behaviour of the camera’s controls and touch screen swipe gestures.
1. Press and hold the DISP BACK button to go straight to the FUNCTION (Fn) SETTING customisation screen.
2. Scroll through the various options, scrolling right to change the default behaviour of each button or swipe.
3. Those functions controlled by gestures on the touch screen will require TOUCH FUNCTION to be enabled. To do this, press MENU/OK, go to the SET UP menu, access the BUTTON/DIAL SETTING menu, then select TOUCH SCREEN SETTING. Ensure TOUCH SCREEN SETTING and T-Fn TOUCH FUNCTION are both set to ON.
Customising EVF and LCD information
The information you see when you compose a scene can be changed so that only the data you need is shown.
1. Press MENU OK, scroll down to the SET UP menu and access SCREEN SET-UP.
2. Scroll to DISP. CUSTOM SETTING.
3. Scroll through and choose the items you’d like to see in the viewfinder and on the camera screen.
Customising the Q Menu
The Q Menu gives you information at a glance and quick access to camera settings. You can also change what’s on the Q Menu screen to suit your way of working.
1. Hold down the Q button for a couple of seconds; the customisation screen will appear.
2. Choose the menu item location you want to customise and press MENU OK.
3. Find the function you’d like to appear in this menu location and press MENU OK.
4. Repeat the above steps for each menu location you want to change. Press DISP BACK to finish.
When using X-H2 in Movie mode, the Q Menu has a different layout, but can still be customised in the same way.
Customising Film Simulation modes
You’ve probably discovered your camera’s Film Simulation modes by now, but did you know you can customise these to your own tastes?

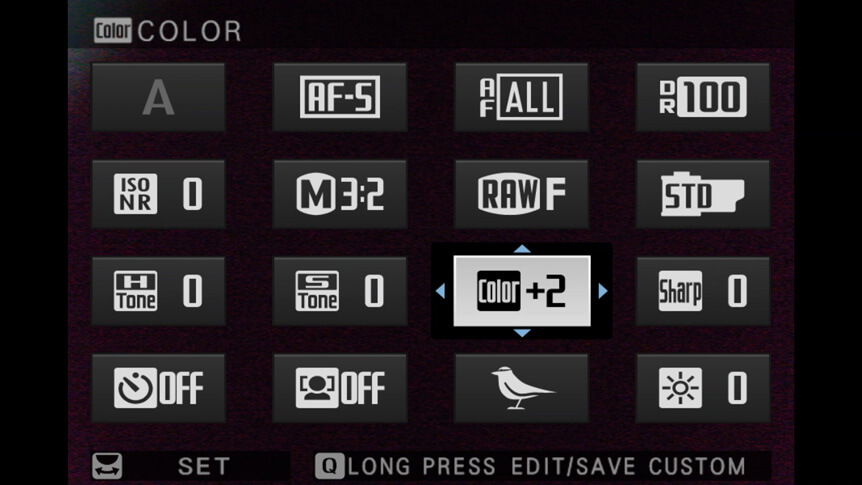

1. Hit the Q button to display the Q Menu.
2. Adjust highlights, shadows and colour saturation with the H Tone, S Tone and Color options.
You can save these new settings as a custom preset for instant recall.
1. Press MENU OK, navigate to the IMAGE QUALITY SETTING menu and choose EDIT/SAVE CUSTOM SETTING.
2. Choose a custom preset slot and scroll right.
3. Press OK, scroll right on the preset slot once again, then select EDIT/CHECK.
4. Select SAVE CURRENT SETTINGS. The camera will ask you to choose OK to confirm changes.
To load your preset, simply turn X-H2’s mode dial to the Custom number you assigned.
Focusing modes
Focus point place and size
The size of the active focusing area used by X-H2 can be changed in size and moved around the frame. In the camera’s Q Menu, you’ll find the AF MODE. Using the touch screen and/or the rear command dial, choose from Single Point (highly selective), Zone (for erratically moving subjects) and Wide/Tracking (uses the whole frame and includes Subject Detection modes).
In the AF/MF SETTING menu, AF MODE can also be set to All. The latter allows you to scroll through all modes while changing the position of the active focusing area as described below.
To move the active point or zone, or change its size while on the shooting screen:
1. Move the Focus Lever in any direction to activate the active point
2. Move the Focus Lever to shift the focus point/area up, down, left or right.
3. Rotate the front or rear command dial to change the size of the focus point/area.
4. Press MENU OK or half-press the shutter release button.
Did you know that pressing the DISP/BACK while you’re adjusting the focus point moves it back to the centre of the frame?
Switch on Subject Detection
X-H2 includes several advanced Subject Detection modes. These can be activated from the Q Menu and AF/MF SETTING menu. Subject Detection can be set to ANIMAL, BIRD, AUTOMOBILE, MOTORCYCLE & BIKE, AIRPLANE and TRAIN.
Custom AF-C modes
The way X-H2 tracks and focuses on moving objects depends on the kind of focusing behaviour specified in continuous AF-C mode.
1. Put the camera in AF-C mode using the Q Menu, then press MENU OK and navigate to the AF/MF SETTING menu.
2. Choose AF-C CUSTOM SETTINGS, then choose preset 1-5 based on the action you’re shooting.
3. Or try setting number 6 to specify your own focusing behaviour.
Making the most of manual focus
When you’re focusing manually, X-H2 offers all kinds of focusing aids to help you nail critical sharpness.
1. Put the camera in M focus mode using the Q Menu, then press MENU OK and navigate to the AF/MF SETTING menu.
2. Scroll down to MF ASSIST and choose from DIGITAL SPLIT IMAGE, DIGITAL MICROPRISM or FOCUS PEAK HIGHLIGHT. In DIGITAL SPLIT IMAGE you can specify COLOR or MONOCHROME, and in FOCUS PEAK HIGHLIGHT you can choose a colour and intensity that shows up best against the subject.
Switch on FOCUS CHECK from the AF/MF SETTING menu and the camera will enlarge a central portion of the scene when you begin to focus manually.
Switch on AF+MF from the AF/MF SETTING menu and you’ll be able to focus manually just by turning the lens focus barrel in AF-S or AF-C – no change of focus mode necessary.
Pixel Shift mode
X-H2 can capture extremely high-resolution 160MP images. In Pixel Shift mode, 20 frames are captured with incremental movements of the sensor between each one. Images are combined into a single file using dedicated Fujifilm software in post-production. This method is ideal for static subjects, such as landscapes and products.
To select Pixel Shift
1. Press DRIVE and navigate to the PIXEL SHIFT MULTI SHOT icon.
2. Select the interval between images. Choices cover SHORT, 1s, 2s, 5s and 15s.
3. Place X-H2 on a tripod. To eliminate the risk of miniscule camera shake when releasing the shutter, press MENU OK, scroll to SHOOTING SETTINGS, choose SELF-TIMER and activate the 2sec or 10sec option.
Using in-body image stabilisation (IBIS) for stills and video
X-H2 uses an in-body image stabilisation (IS) system, which helps to keep images sharp, especially when shooting handheld at slower shutter speeds. It can be used with any lens, including those with an Optical Image Stabilisation mode of its own.
You can set the IS system to be on all the time (CONTINUOUS), to be on only when focusing, or when an exposure is taken (SHOOTING ONLY), or off entirely. The latter is useful if you don’t need IS: for instance, when working in very bright light, with the camera on a tripod, or when using creative techniques like intentional camera movement.
If you’re working with an OIS lens, the OIS mode must be set to ON for these settings to be available.
To do it, press MENU OK and navigate to the SHOOTING SETTING menu. Select IS MODE and scroll right to choose the option you require.
Using IBIS for video
In Movie mode, there are separate controls for X-H2’s in-body image stabilisation. You’ll find these in the MOVIE SETTING menu.
Locate IS MODE and scroll right to choose the best option for you. IBIS/OIS uses the sensor-shift mechanism in X-H2’s body, and any optical stabilisation in the lens attached. If you pick IBIS/OIS + DIS, you’ll also get digital stabilisation which adds further steadiness, but will crop the footage very slightly. Choose OFF when IS is not required.
IS MODE BOOST is designed to further improve the smoothness of footage. Choose ON when shooting handheld from a static position, and OFF when panning with the subject.
Shooting video
Picking the right settings
To access X-H2’s movie functions, first select the Movie option on the top-plate Drive dial. Press MENU OK and note that the camera’s menu system has switched to a movie-specific layout. Next, choose a combination of resolution/frame rate from the MOVIE SETTING > MOVIE MODE menu.
1. 8K (4320p) resolution offers the highest quality on X-H2 and this is available up to 29.97p.
2. There are also 6.2K (3510p) and 4K HQ (2160p with 8K oversampling) modes at up to 29.97p, as well as 4K DCI (2160p) and 4K (2160p) modes at up 59.94p.
3. Full HD (1080p) resolutions are a good compromise between quality and storage size.
4. When it comes to frame rates, 24p, 25p or 30p are fine for most normal applications. 24p is sometimes favoured by creative filmmakers for its Hollywood look and feel.
5. Footage shot at frame rates of 59.94p or 50p can capture motion more smoothly. Plus, when played back at normal speeds (30fps or 25fps) during editing, it delivers silky-smooth slow motion.
Did you know that 25p and 50p frame rates are best for European countries, while 30p and 59.94p are more suited to the US? This is because of the different frequencies of mains electricity in these territories, which can cause lights to flicker slightly at 50Hz or 60Hz, respectively.
Exposure settings for cinematic video
Here’s a set of standard settings you can use in manual (M) shooting mode that will create great-looking, cinematic-style video.
- Choose a frame rate – 24fps is a standard used in the movie industry and has a very top-end look and feel.
- Select a shutter speed that is roughly double the frame rate you’re using, so that each frame is exposed for 50% of the time. So, if you’re shooting at 24fps, pick a shutter speed of 1/48 sec.
- Select the aperture you need for the required depth-of-field.
- Adjust the camera’s ISO sensitivity to get the proper exposure.
How to shoot slow-motion video
If you want to access slow-motion video settings, you’ll find them under HIGH SPEED REC in the MOVIE SETTING menu. Here you can select Full HD (1080p) resolution at frame rates of up to 240p.
But remember, your shutter speed will need to increase with the frame rate, so a 120p setting needs 1/240 sec and a 240p setting needs 1/480 sec.
You can also select the playback rate to change the rate of movement. For instance, using a 240p frame rate at a playback speed of 24p gives 10x slow motion.
Continuous focusing with video
Switch to AF-C using the AF/MF SETTING menu, then set AF MODE to MULTI and X-H2 will adjust focusing as you film, tracking people around the frame if the Face/Eye Detection mode is switched on. You can turn this on from the AF/MF SETTING using the FACE/EYE DETECTION SETTING menu.

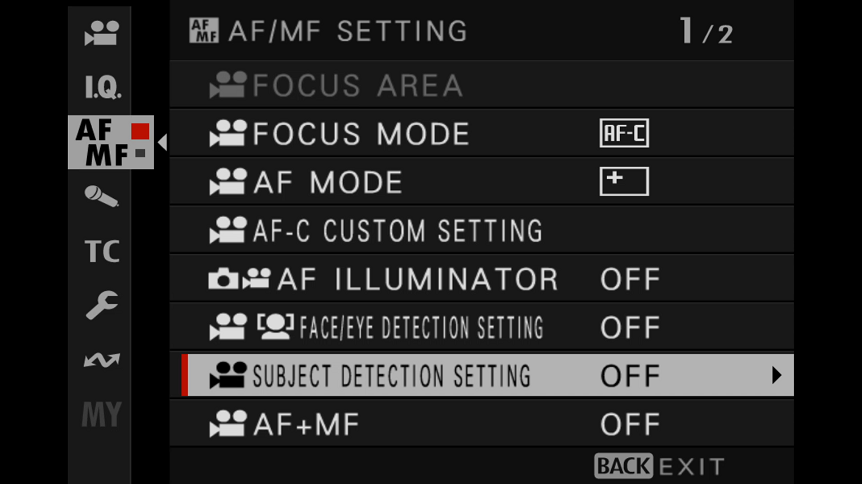

In Movie mode you can also use the Subject Detection modes, which are also found in the AF/MF SETTING menu.
If you need more precision, set the AF MODE to AREA, which allows you to change the focusing point location and size in the same way as stills photography.
ETERNA and F-Log
To protect highlights and allow video to be colour graded during editing, videographers often shoot very low-contrast footage, with muted colours. You can do this in several ways on X-H2. Here are two:
1. Set ETERNA as the Film Simulation to recreate the look of this classic FUJIFILM emulsion, used widely in the film industry. Go to the IMAGE QUALITY SETTING menu, choose FILM SIMULATION and then pick ETERNA.
2. Set F-Log RECORDING to ON (you’ll find this in the MOVIE SETTING menu). F-Log produces flat-looking footage straight from the camera, which can be colour graded with very good results in post-production. F-Log2 provides even more dynamic range than original F-Log. The choice can be made depending on the requirements of a scene.
Connecting to your smart device
X-H2 can communicate wirelessly with your smartphone or tablet computer via Bluetooth and Wi-Fi, so you can transfer pictures to your device, where they can be edited and shared with friends and followers online. You can also use your smart device to shoot remotely, controlling the camera and even composing via a remote live view.
Linking to the camera for the first time
1. Instal the free FUJIFILM Camera Remote app on your iOS or Android device.
2. Turn on the camera, press MENU OK and navigate to the SET UP menu. Choose NETWORK/USB SETTING > Bluetooth SETTINGS > PAIRING REGISTRATION. On X-H2 you can also find the Bluetooth settings by pressing and holding the DISP/BACK button. The camera will begin searching for your device.
3. In the FUJIFILM Camera Remote app, follow the on-screen instructions to complete the pairing process. You may need to tap the Camera List menu in the top-left of the screen if you already have another camera paired.
Transferring images to your device
1. Press the PLAY button, then press the Fn button marked ISO on the top of the camera.
2. Scroll through your images, pressing MENU OK to tag any for transfer.
3. When you’ve finished, hit DISP BACK. Image transfer should begin.
If your device is already connected to a Wi-Fi network, the app may ask to switch to the camera’s own Wi-Fi before transfer can begin.
Remote shooting and control
1. Launch the FUJIFILM Camera Remote app from your smart device and tap the camera name to connect.
2. Tap the Live view shooting option to begin controlling X-H2.
To make things even easier, why not map WIRELESS COMMUNICATION to one of the camera’s function buttons?
